  • secure fixation thanks to the extremely stretchable LDPE special film
  • the product is encased in film between two fixation frames
  • secure fixation thanks to the extremely stretchable LDPE special film
  • outer box available separately


1
2
3
4
Show 2 pictures

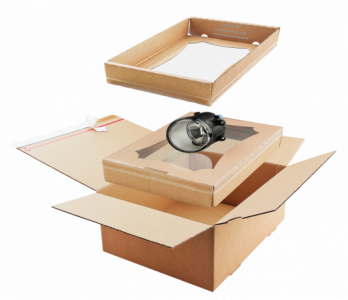

EASYSNAP

significant handling advantage thanks to the pre-assembled 4-point glued frame design

General information:

  • corrugated cardboard die-cut insert with 60 micron LDPE retention film membrane packaging, 4-point glued
  • delivered flat
  • the content is optimally protected between 2 membranes feature
  • the film adjusts to the product
  • fits perfectly in the stocked Packfix outer box
  • extremely matching standard LDPE special film
  • matching outer box in standard programme
  • suitable for particularly sensitive products

Show product video

Technical product information:

Item no. Max. usable size in mm External dimensions in mm Bundle / Pal. Pce. gr / Pal. kg Pallet size in cm overbuilt Quality
ES100 138 x 108 x 58 20 / 2400 66 / 178 120 x 81 x 150 yes 1.50-B-22
ES300 188 x 148 x 58 20 / 1960 81 / 179 120 x 80 x 177 no 1.50-B-22
MB350 248 x 161 x 60 20 / 880 153 / 155 120 x 80 x 173 no 1.50-C-22
MB400 263 x 183 x 33-72 20 / 1760 98 / 192 121 x 84 x 173 yes 1.50-C-22
ES500 273 x 174 x 57 20 / 1680 100 / 188 120 x 80 x 177 no 1.50-B-22
ES9500 358 x 165 x 112 20 / 480 308 / 168 120 x 88 x 171 yes 2.50-BC-21
ES9600 383 x 298 x 137 15 /240 428 / 123 120 x 80 x 169 no 2.50-BC-21
ES9700 428 x 343 x 192 15 / 240 826 / 218 120 x 89 x 178 yes 2.90-BC-22
ES9800 529 x 429 x 192 10 / 240 1039 / 269 120 x 87 x 178 yes 2.90-BC-22
We reserve the right to make technical changes in case of product improvements.
