  • non-slip packing of the product thanks to film fixation
  • optimum product presentation thanks to transparent film
  • bevelled flaps provide additional shock-absorption
  • Packfix available separately

1
2
3
  • non-slip packing of the product thanks to film fixation
  • optimum product presentation thanks to transparent film
  • Packfix available separately

1
2
3
4
Show 2 pictures

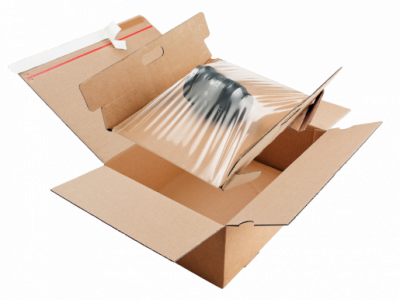

MULTISNAP

Two parts for a brilliant solution

General information:

  • corrugated die-cut insert with 60 micron LDPE special film for securing shipped goods
  • variable filling in length, width and height thanks to the flexible retention film
  • extremely stretchable LDPE special film
  • fits perfectly in matching Packfix box from our standard programme
  • suitable for particularly sensitive products

Show product video

Technical product information:

Item no. Max. usable size in mm External dimensions in mm Bundle / Pal. Pce. gr / Pal. kg Pallet size in cm overbuilt Quality
MS200 122 x 81 x 75 210 x 150 x 109 20 / 3360 46 / 208 120 x 80 x 178 no 1.40-D-27
MS250 139 x 88 x 46 227 x 157 x 80 20 / 5440 40 / 238 120 x 80 x 178 no 1.40-B-27
MS300 220 x 170 x 90 308 x 239 x 124 20 / 3360 120 / 229 128 x 80 x 177 yes 1.50-B-22
MS400 219 x 158 x 126 307 x 227 x 160 20 / 1360 141 / 211 120 x 80 x 178 no 1.40-B-27
MS500 305 x 222 x 90 393 x 291 x 124 20 / 2240 188 / 239 120 x 93 x 177 yes 1.50-B-22
MS600 299 x 215 x 144 387 x 287 x 180 20 / 840 220 x 184 123 x 80 x 179 yes 1.50-C-22
MS700 339 x 235 x 164 427 x 307 x 200 20 / 840 266 / 223 136 x 80 x 179 yes 1.50-C-22
MS9500 170 x 256 x 74 258 x 328 x 110 20 / 1440 104 / 170 120 x 89 x 118 yes 2.40-EB-22
MS9600 263 x 161 x 60 357 x 245 x 108 20 / 960 170 / 183 120 x 86 x 118 yes 2.40-EB-22
MS9700 385 x 216 x 49 479 x 311 x 98 20 / 480 249 / 140 120 x 80 x 118 no 2.40-EB-22
MS9800 468 x 300 x 60 562 x 423 x 109 20 / 480 323 / 175 120 x 80 x 118 no 2.40-EB-22
We reserve the right to make technical changes in case of product improvements.
