- anti-theft security seal
- all-round edge protection
- self-adhesive closure and tear strip
- variable height using creases
- the patented stabilisers keep the side flaps upright at a 90° angle
- all-round edge protection
- self-adhesive closure and tear strip
Show 3 pictures

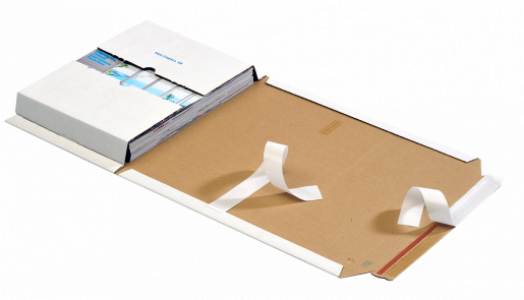

MULTIWELL 2 series
the right solution for any format
General information:
- shipment packaging with variable height
- self-adhesive closure and tear strip
- anti-theft security seal
- all-round edge protection
- strong kraftliner quality
- handling advantage through patented stabilisers
Technical product information:
| Item no. | Max. usable size in mm | External dimensions in mm | Bundle / Pal. | Pce. gr / Pal. kg | Pallet size in cm | overbuilt | Quality |
|---|---|---|---|---|---|---|---|
| MW52 | 217 x 155 x 10-50 | 263 x 161 x 22-62 | 25 / 2400 | 70 / 187 | 120 x 80 x 156 | no | 1.30-B-31 |
| MW54 | 245 x 165 x 20-70 | 291 x 171 x 32-82 | 25 / 2400 | 85 / 223 | 120 x 83 x 175 | yes | 1.30-B-31 |
| MW56 | 270 x 185 x 20-60 | 316 x 191 x 32-72 | 25 / 1600 | 99 / 179 | 120 x 80 x 175 | no | 1.30-B-31 |
| MW58 | 302 x 215 x 20-75 | 348 x 221 x 32-87 | 25 / 1600 | 125 / 220 | 128 x 80 x 175 | yes | 1.30-B-31 |
| MW62 | 325 x 250 x 20-75 | 371 x 256 x 32-87 | 25 / 1200 | 148 / 198 | 120 x 80 x 162 | no | 1.30-B-31 |
| MW64 | 330 x 270 x 20-75 | 376 x 276 x 32-87 | 25 / 1200 | 157 / 208 | 120 x 80 x 160 | no | 1.30-B-31 |
| MW67 | 370 x 290 x 20-75 | 416 x 296 x 32-87 | 25 / 1200 | 183 / 239 | 123 x 84 x 175 | yes | 1.30-B-31 |
| MW68 | 455 x 320 x 20-55 | 501 x 326 x 32-67 | 25 / 800 | 228 / 202 | 120 x 82 x 175 | yes | 1.30-B-31 |
We reserve the right to make technical changes in case of product improvements.
