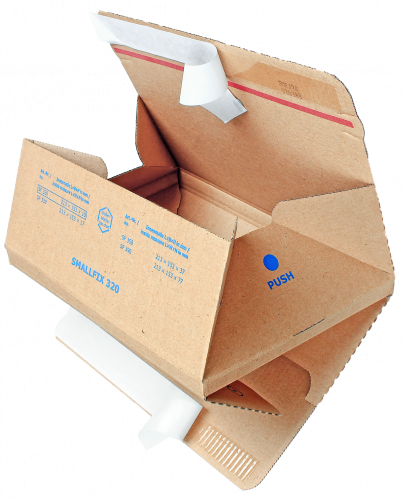

  • quick set up thanks to the half-automatic bottom

Show 3 pictures

1
2
3
Show 3 pictures

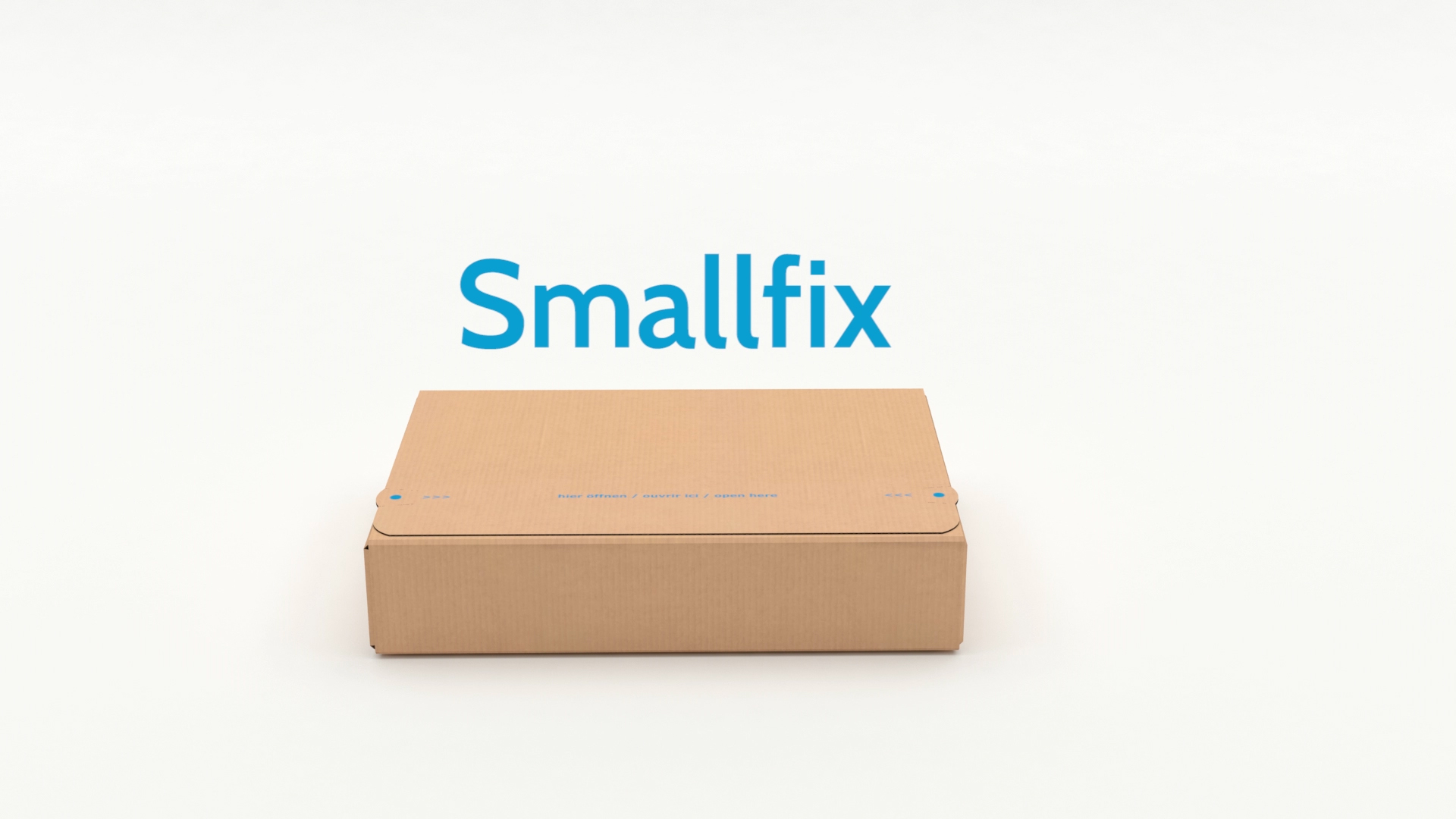

SMALLFIX

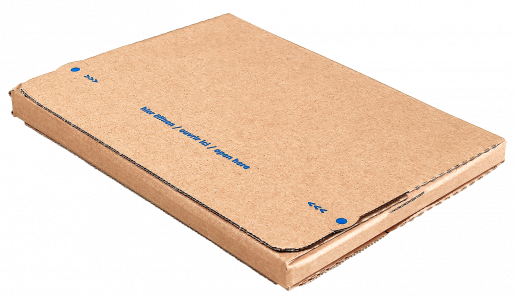

The versatile shipping packaging in a flat format with automatic base and filling from the top

General information:

  • quick shipping packaging with half-automatic bottom
  • quick set up thanks to the half-automatic bottom
  • all-round sealed and anti-theft protected thanks to the connection between the inlying and external lid-/base-flaps
  • available in postage optimised heights down to a minimum of 10 mm

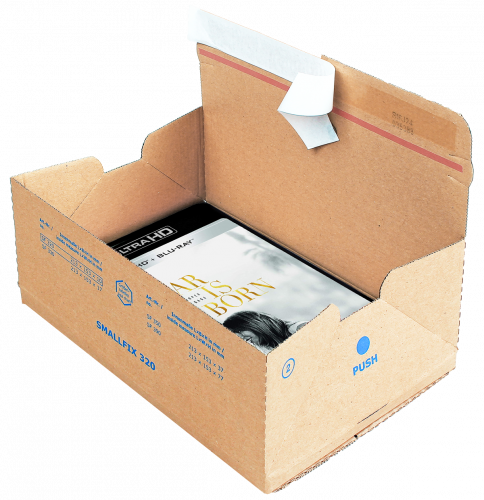

  • also available in flat versions always easy to fill from the top
  • with self-adhesive closure and tear strip
  • protected development from DREI V


Technical product information:

Item no. Max. usable size in mm External dimensions in mm Bundle / Pal. Pce. gr / Pal. kg Pallet size in cm overbuilt Quality
SF120 213 x 153 x 8 219 x 157 x 20 25 / 2700 47 / 147 120 x 80 x 173 no 1.20-E-21
SF130 213 x 153 x 17 219 x 157 x 29 25 / 2700 49 / 152 120 x 80 x 173 no 1.20-E-21
SF150 213 x 153 x 37 219 x 157 x 49 25 / 2700 57 / 173 120 x 80 x 173 no 1.20-E-21
SF190 213 x 153 x 77 219 x 157 x 89 25 / 2700 63 / 190 120 x 80 x 173 no 1.20-E-21
SF124 305 x 215 x 8 311 x 219 x 20 25 / 1800 293 / 389 120 x 80 x 122 yes 1.30-E-22
SF134 305 x 215 x 17 311 x 219 x 29 25 / 1800 301 / 399 120 x 80 x 122 yes 1.30-E-22
SF154 305 x 215 x 37 311 x 219 x 49 25 / 1800 320 / 423 120 x 80 x 122 yes 1.30-E-22
SF194 305 x 215 x 77 311 x 219 x 89 25 / 1350 352 / 463 120 x 80 x 122 yes 1.30-E-22
SF320 213 x 153 x 8 219 x 157 x 20 25 / 2700 47 / 147 120 x 80 x 173 no 1.02-E-20
SF330 213 x 153 x 17 219 x 157 x 29 25 / 2700 49 / 152 120 x 80 x 173 no 1.02-E-20
SF350 213 x 153 x 37 219 x 157 x 49 25 / 2700 57 / 173 120 x 80 x 173 no 1.02-E-20
SF390 213 x 153 x 77 219 x 157 x 89 25 / 2700 63 / 190 120 x 80 x 173 no 1.02-E-20
We reserve the right to make technical changes in case of product improvements.
