  • self-adhesive closure and tear strip
  • quick to open with the tear strip
  • strong flute corrugated board guarantees a high level of bend protection


1
2
3
Show 2 pictures

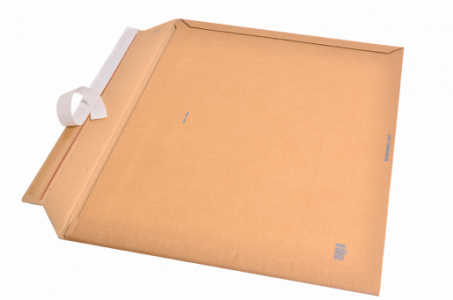

SUPRAWELL 9 series

mailer for large formats up to DIN A2

General information:

  • variable fill height of up to 25mm
  • with self-adhesive closure and tear strip
  • secure shipping
  • easy handling
  • strong kraftliner quality


Technical product information:

Item no. Max. usable size in mm External dimensions in mm Bundle / Pal. Pce. gr / Pal. kg Pallet size in cm overbuilt Quality
SW905 230 x 120 233 x 123 25 / 5400 26 / 162 120 x 80 x 109 no 1.20-E-21
SW912 223 x 159 226 x 162 25 / 7875 32 / 275 120 x 80 x 170 no 1.20-E-21
SW918 249 x 199 252 x 202 25 / 6300 66 / 298 120 x 80 x 180 no 1.20-E-21
SW930 333 x 231 336 x 234 25 / 4200 73 / 327 121 x 80 x 180 yes 1.20-E-21
SW940 347 x 247 350 x 250 25 / 4200 118 / 267 127 x 80 x 180 yes 1.20-E-21
SW965 443 x 321 446 x 324 25 / 2100 185 / 214 120 x 80 x 180 no 1.20-E-21
SW981 533 x 431 536 x 434 25 / 1050 116 / 136 120 x 80 x 180 no 1.20-E-21
SW990 662 x 487 665 x 490 25 / 650 300 / 215 120 x 80 x 180 no 1.31-B-21
SW995 737 x 527 740 x 530 25 / 600 319 / 211 121 x 80 x 179 yes 1.31-B-21
SW998 1047 x 747 1050 x 750 25 / 280 690 / 213 120 x 86 x 1168 yes 1.31-B-21
We reserve the right to make technical changes in case of product improvements.
